Difference between vertex and fragment shaders in OpenGL?

Contents:

1.) ... Difference between vertex and fragment shaders!
2.) ... Simple example of vertex and fragment shaders!
3.) ... What should I pay attention to with shaders?

1.) Difference between vertex and fragment shaders!

Vertex shader:

The vertex shader is called per vertex, not per pixel. A vertex is a corner point of a 3D model.

The main task of the vertex shader is to perform transformations on the input vertices to project them into image space. This typically involves transformations such as model view and projection matrix multiplications.

The vertex shader can also be used to pass data to the fragment shader, such as interpolated values ​​calculated between vertices.

Fragment shader:

The fragment shader is called per pixel after the graphics hardware has rendered the geometry.
The main task of the fragment shader is to calculate the color values ​​of the pixels that will appear in the image. This often includes calculations for lighting, texture mapping, color interpolation, etc.

The fragment shader can also be used for various operations such as discarding pixels or writing to the framebuffer.

In summary:

The vertex shader is called per vertex and performs transformations, while the fragment shader is called per pixel and performs the calculations for coloring.

2.) Simple example of vertex and fragment shaders!

Here's a simple example of a vertex and fragment shader in OpenGL GLSL (OpenGL Shading Language). This example shows a vertex shader that performs a simple transformation and a fragment shader that sets the color of the fragments:

1. Vertex Shader:

#version 330 core

layout ( location =  0 ) in vec3 inPosition;   // Input attributes: position of the vertex

uniform mat4 modelViewProjection;   // Uniform for the model view projection matrix

out vec4 color;   // Output variable passed to the fragment shader

void main () {
gl_Position = modelViewProjection * vec4 ( inPosition, 1. 0 ) ;   // Transformation calculation
color = vec4 ( 1. 0 , 0. 0 , 0. 0 , 1. 0 ) ;   // Red color is passed to the fragment shader
}

2. Fragment-Shader:

#version 330 core

in vec4 color;   // Input variable from the vertex shader

out vec4 fragColor;   // Output variable: Color of the fragment

void main () {
fragColor = color;   // The color of the fragment is taken from the vertex shader
}

In this example, the vertex shader performs a simple transformation and passes a red color for each vertex to the fragment shader. The fragment shader then simply applies this color to each fragment and outputs it as the final result.

Please note that this is a very simple example; in practice, much more complex shaders are used to render 3D scenes.

3.) What should I pay attention to with the shaders?

There are several important aspects to consider when creating shaders to ensure they work efficiently and correctly. Here are some general considerations:

Correct syntax and semantics:

Make sure your shaders use correct GLSL syntax and that the semantics of shader input and output variables, as well as the use of uniforms, are correct.

Shader compilation and linking:

Check the compilation and linking status of your shaders to ensure they built successfully. If there are any errors, you will receive error logs that can help you identify problems.

Performance optimization:

Shader efficiency is crucial. Avoid unnecessary calculations and ensure your shaders can run as quickly as possible. Consider optimizations such as avoiding expensive operations in loops or using texture mipmaps.

Unit normalization:

Be sure to normalize normals and vectors when necessary. Normalized vectors are often necessary to perform correct lighting calculations.

Correct use of texture coordinates:

When using textures, make sure you use texture coordinates correctly and that they are in the correct range (usually between 0 and 1).

Consistent data types:

Make sure the data types of your variables are consistent. Different data types can lead to unexpected behavior.

Resource-efficient use of uniforms:

Use uniforms sparingly and efficiently. Too many changes to uniform variables can affect performance.

Shader version and features:

Make sure you are using the correct shader version for your needs and understand which features are available in that version.

Check compatibility:

Check that the features you are using are supported by the hardware and the OpenGL version your application is running on.

Debugging:

Use debugging tools such as glGetShaderInfoLog, glGetProgramInfoLog, and shader debuggers to identify and troubleshoot problems.

Consult the documentation:

Consult the OpenGL and GLSL documentation to ensure you are following the latest best practices and recommendations.

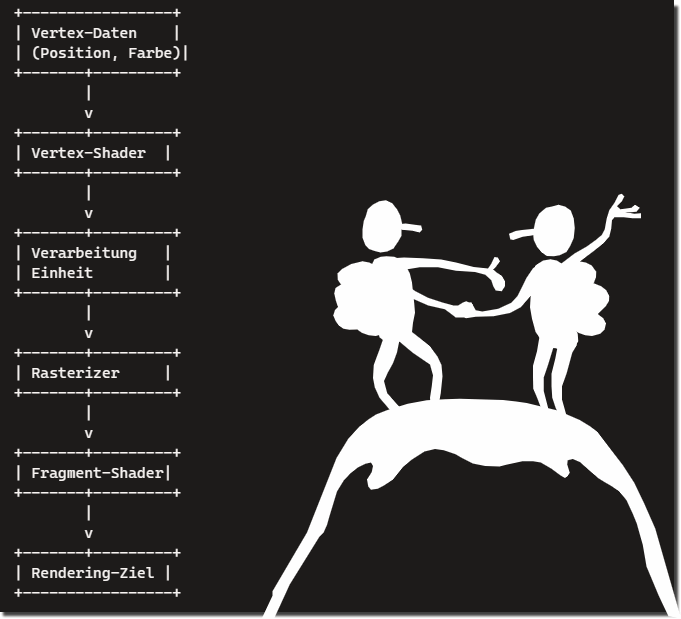

(Image-1) Vertex and fragment shaders
